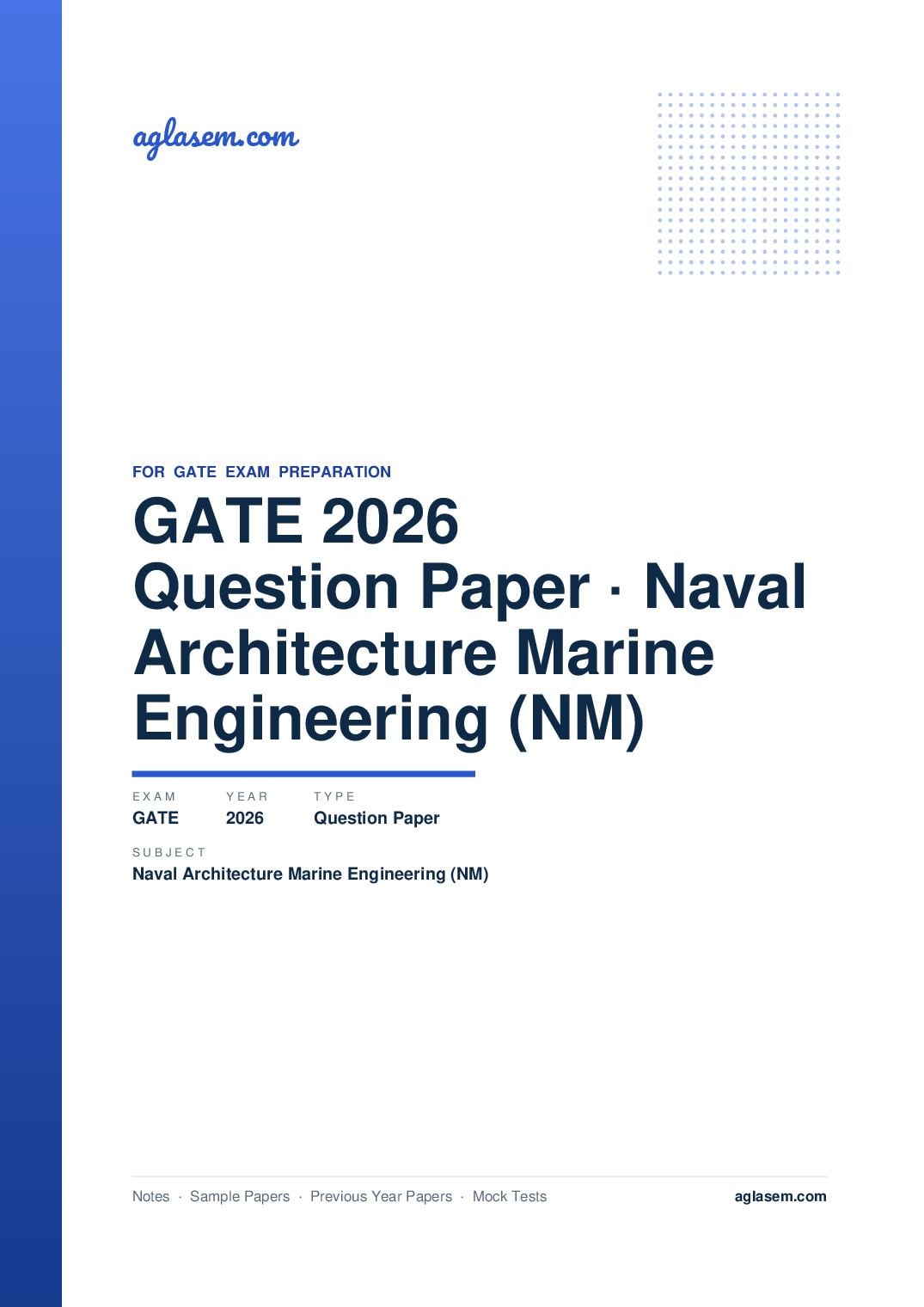

GATE 2026 Question Paper Naval Architecture and Marine Engineering (NM)

FOR GATE EXAM PREPARATION

GATE 2026
Question Paper · Naval
Architecture Marine
Engineering (NM)
EXAM YEAR TYPE

GATE 2026 Question Paper
SUBJECT

Naval Architecture Marine Engineering (NM)

Notes · Sample Papers · Previous Year Papers · Mock Tests

m
m .co

m .co s e m
Naval Architecture & Marine Engineering (NM)

se g l a
a
General Aptitude (GA)
Q.1 – Q.5 Carry ONE mark Each

Q.1 Expedite, Hasten, Hurry, __________

Fill the blank by choosing a word with a meaning similar to that of the words
m
m .co
given above.

.co s e m
s em l a
g la ag
(A) a Accelerate

(B) Retard

(C) Provide

m
.co
(D) Disable

e m
las
ag

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 1 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 1 of 40

Naval Architecture & Marine Engineering (NM)

Q.2 A black square PQRS has been cut into two parts. One part of it is shown in
Panel I. Which one of the shapes in Panel II is the other part?

(A) (i)

(B) (ii)

(C) (iii)

(D) (iv)

Organizing Institute: IIT Guwahati Page 2 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 2 of 40

m
m .co

m .co s e m
Naval Architecture & Marine Engineering (NM)

se g l a
a
Q.3 A day can only be cloudy or sunny. The probability of a day being cloudy is 0.5,
independent of the condition on other days. What is the probability that in any
given four days, there will be three cloudy days and one sunny day?

m
m .co
m .co s e m
s e l a
ag
(A) 1/4

g l a
(B) a 3/4

(C) 2/3

(D) 3/8

m
m .co
s e
g la
a

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 3 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 3 of 40

Naval Architecture & Marine Engineering (NM)

Q. 4 The values of Stock A and Stock B on a particular day are Rs. 50 and Rs. 80,
respectively. An investor invests Rs. 100 in Stock A and Rs. 80 in Stock B. He
sells all the stocks the next day when the value of Stock A is Rs. 55 and Stock B
is Rs. 70. The profit made by the investor is Rs. ________

(A) 0

(B) 5

(C) 10

(D) 20

Q.5 ‘When it is raining, peacocks dance.’

Based only on this sentence, which one of the following options is necessarily
true?

(A) Peacocks dance only when it is raining.

(B) When peacocks dance, it is raining.

(C) When peacocks are not dancing, it is not raining.

(D) When it is not raining, peacocks do not dance.

Organizing Institute: IIT Guwahati Page 4 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 4 of 40

m
m .co

m .co s e m
Naval Architecture & Marine Engineering (NM)

se g l a
a
Q.6 – Q.10 Carry TWO marks Each

Q.6 Water : P :: Food : Q

Choose the P and Q combination from the options below to form a meaningful
analogy.
m
m .co
m .co s e m
s e l a
(A)
g
P =aThirst; Q = Hunger
l ag
a
(B) P = Drink; Q = Hunger

(C) P = Thirst; Q = Satiated

(D) P = Wet; Q = Critic

m
m .co
s e
g la
a

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 5 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 5 of 40

Naval Architecture & Marine Engineering (NM)

Q.7 Two tiles are missing in Panel I. Which one of the options in Panel II is the
appropriate choice for the missing tiles?

(A) (i)

(B) (ii)

(C) (iii)

(D) (iv)

Organizing Institute: IIT Guwahati Page 6 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 6 of 40

m
m .co

m .co s e m
Naval Architecture & Marine Engineering (NM)

se g l a
a
Q.8 Figures (i) and (ii) represent intercity highway systems. The black dots represent
cities and the line segments between them represent intercity highways.
A salesperson needs to make a trip. She needs to start from a city, visit each of the
remaining cities exactly once, and finally return to the same city from which she
started.

m
.co
Which one of the following options is then true?
m
m .co s e m
s e l a
g l a ag
a

m
.co
s em
g la
(A)
a
Such a trip is possible for (i), but not for (ii).

(B) Such a trip is possible for (ii), but not for (i).

(C) Such a trip is possible for both (i) and (ii).

m
m
(D) Such a trip is possible neither for (i) nor for (ii).
.co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 7 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 7 of 40

Naval Architecture & Marine Engineering (NM)

Q. 9 The figure in Panel I below is a grid of cells with four rows and four columns.
The numbers on the top and on the left represent the number of cells that are to
be shaded in that column and row, respectively. Which one of the options shown
in Panel II below represents the grid shaded correctly?

(A) (i)

(B) (ii)

(C) (iii)

(D) (iv)

Organizing Institute: IIT Guwahati Page 8 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 8 of 40

m
m .co

m .co s e m
Naval Architecture & Marine Engineering (NM)

se g l a
a

m
Q.10 An unbiased six-faced dice whose faces are marked with numbers 1, 2, 3, 4, 5,

.co
and 6 is rolled twice in succession and the number on the top face is recorded
m
.co m
each time. The probability that the sum of the two recorded numbers is a prime
number is ________
m s e
s e l a
g l a ag
a
(A) 3
36

(B) 13
36

m
(C) 15
m .co
36
s e
g la
(D) 19 a
36

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 9 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 9 of 40

Q.11 – Q.35 Carry ONE mark Each

1 𝑝 𝑞+𝑟
Q.11 The determinant of the matrix (1 𝑞 𝑟 + 𝑝 ) is ______.
1 𝑟 𝑝+𝑞

(A) 𝑝𝑞𝑟

(B) 𝑝+𝑞+𝑟

(C) 𝑝𝑞 + 𝑞𝑟 + 𝑟𝑝

(D) 0

Q.12 The gradient of a scalar field is ______.

(A) a vector

(B) a scalar

(C) a second order tensor

(D) always zero

Organizing Institute: IIT Guwahati Page 10 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 10 of 40

m
m .co

m .co s e m

se g l a
a
Q.13 Which ONE of the following curves represents the equation 𝑦 = 𝑒 −𝑥 ?

Figures not to scale

m
m .co
m .co s e m
s e l a
(A)
g l a ag
a

m
(B)

m .co
s e
g la
a

(C)

m
m .co
m .co s e m
s e g l a
g la a
a
(D)

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 11 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 11 of 40

Q.14 The Fourier series expansion of the function 𝑓(𝑥) = |cos(𝑥)| in the interval
1 1
(−𝜋, 𝜋) is 𝛼 + 𝛽 [ cos(2𝑥) − 15 cos(4𝑥) + ⋯ ].
3

The values of 𝛼 and 𝛽 respectively are ______.

(A) 2/𝜋 and 4/𝜋

(B) 4/𝜋 and 2/𝜋

(C) 𝜋/2 and 𝜋/4

(D) 𝜋/4 and 𝜋/2

Organizing Institute: IIT Guwahati Page 12 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 12 of 40

m
m .co

m .co s e m

se g l a
a
Q.15 Consider two configurations P and Q of a stationary ship floating in calm water with
transverse sections as shown in the figure, where M is the metacentre, G is the centre
of gravity, and B is the centre of buoyancy.

Which ONE of the following statements is TRUE regarding the static stability of
the ship?
m
m .co
m .co s e m
s e l a
g l a ag
a

m
.co
s em
(A)
g la
Configuration P is stable and configuration Q is unstable.
a
(B) Both configurations are stable.

(C) Configuration P is unstable and configuration Q is stable.

(D) Both configurations are unstable.
m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 13 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 13 of 40

Q.16 If the indicated power of an IC engine at NO-LOAD condition is 0.5 kW, then the
friction power is ______ kW.

(A) 1

(B) 2

(C) 0.5

(D) 0

Q.17 A ship floating in seawater has a TPC (Tonne Per Centimeter immersion) of 20.

If bilge keel of total mass 65.1 tonne and volume 44 m3 is added to the ship, then
the change in the mean draft is ______ cm.

Assume that after bilge keel fitment, the TPC remains constant, and the ship
undergoes parallel sinkage. Density of seawater is 1025 kg/m3.

(A) 0.5

(B) 1

(C) 0.55

(D) 1.1

Organizing Institute: IIT Guwahati Page 14 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 14 of 40

m
m .co

m .co s e m

se g l a
a
Q.18 The state of plane stress in an element is shown in the figure.

The maximum shear stress in the element is ______ N/mm2.

m
m .co
m .co s e m
s e l a
g l a ag
a

(A) 0
m
(B) 5
m .co
s e
g la
(C) 10
a
(D) 25

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 15 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 15 of 40

Q.19 The virtual work principle states that ______.

(A) external virtual work is equal to internal virtual work

(B) there is equilibrium of external and internal forces

(C) virtual work is inversely proportional to virtual displacement

(D) the potential energy of the system is equal to its kinetic energy

Q.20 The potential flow theory assumes that the flow is ______.

(A) irrotational, inviscid and incompressible

(B) rotational, viscous and incompressible

(C) rotational, viscous and compressible

(D) irrotational, inviscid and compressible

Organizing Institute: IIT Guwahati Page 16 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 16 of 40

m
m .co

m .co s e m

se g l a
a
Q.21 The RAO (Response Amplitude Operator) of a floating body with no forward speed
is denoted by 𝐻(𝜔).

If it encounters a wave spectrum 𝑆(𝜔), then its response spectrum is ______.

m
co
m m .co
𝐻(𝜔)𝑆(𝜔). s e
em a
(A)
s l
g la ag
(B)
a |𝐻(𝜔)| 𝑆(𝜔) 2

(C) |𝐻(𝜔)|3 𝑆(𝜔)

(D) |𝐻(𝜔)|𝑆(𝜔)

m
.co
Q.22
s em
The sway-yaw coupled maneuvering equation of motion for a ship is

g la ] [𝑣̇ ] = [ 𝑌 𝑌 ] [𝑣] + [ 𝑌 ] 𝛿
[
𝑀 − 𝑌𝑣̇
−𝑁𝑣̇ a𝐼 − 𝑁 𝑟̇ 𝑁 𝑁 𝑟 𝑁
𝑧
−𝑌 𝑟̇
𝑟̇
𝑣
𝑣
𝑟
𝑟
𝛿
𝛿
𝑅

For a control-fixed straight-line stability, the eigenvalues of the function
should be ______.

m
m .co
(A) real and negative

m .co s e m
s e (B) real and positive
g l a
g la a
a (C) complex numbers with positive real part and negative imaginary part

(D) zero

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 17 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 17 of 40

Q.23 Which of the following ordinary differential equations is/are linear?

(A) 𝑑𝑦
(𝑥 + 1) − 𝑦 = 𝑒 𝑥 (𝑥 + 1)2
𝑑𝑥

(B) 𝑑𝑦 𝑑𝑥 𝑦 𝑥
− = −
𝑑𝑥 𝑑𝑦 𝑥 𝑦

(C) 𝑑2𝑦
+ 𝑛2 𝑥 = 0, where 𝑛 is a constant
𝑑𝑥 2

(D) 𝑑𝑦
𝑥𝑦 = 1 + 𝑥 + 𝑦 + 𝑥𝑦
𝑑𝑥

Q.24 Which of the following structures is/are mainly used for harbor berthing?

(A) Dolphins

(B) Jetty

(C) Quay

(D) Jacket

Organizing Institute: IIT Guwahati Page 18 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 18 of 40

m
m .co

m .co s e m

se g l a
a
Q.25 Which ONE or MORE of the following welds can be performed through resistance
welding method?

m
(A) Seam
m .co
m .co s e m
s e l a
ag
(B) Spot

g l a
(C) a Fillet

(D) Groove

m
.co
Q.26 Which of the following factors affect(s) knocking in a Diesel engine?

e m
las
ag
(A) Injection timing

(B) Cetane number of the fuel

(C) Spark timing

m
m .co
.co
(D) Compression ratio
e m
e m l as
las ag
ag

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 19 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 19 of 40

Q.27 During a captive maneuvering model test of a ship with a rudder, which ONE or
MORE of the following coefficients can be calculated using an oblique towing test
(straight line test with a drift angle)?

(A) 𝑌𝑣 and 𝑌𝑣𝑣𝑣

(B) 𝑁𝑣 and 𝑁𝑣𝑣𝑣

(C) 𝑌𝑣𝛿𝛿 and 𝑁𝑣𝛿𝛿

(D) 𝑁𝑟𝛿𝛿 and 𝑁𝑣𝑟𝛿

Q.28 The weight of a ship is uniformly distributed along its length.
Under which ONE or MORE of the following conditions will the ship be subjected
to hogging moment?

Note: The weight is equal to buoyancy in all of the following conditions.

(A) When buoyancy per unit length is greater than weight per unit length amidships

(B) When weight per unit length is greater than buoyancy per unit length in the bow
and stern region

(C) When the ship is on a single wave with its crest at midship and troughs at the bow
and stern

(D) When the ship is on a single wave with its crests at the bow, stern and the trough at
midship

Organizing Institute: IIT Guwahati Page 20 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 20 of 40

m
m .co

m .co s e m

se g l a
a
Q.29 Which of the following processes is/are used for heat addition in an air-standard
dual cycle?

m
(A) Isochoric
m .co
.co s e m
s em l a
ag
(B) Isobaric

g la
(C) a Isentropic

(D) Isothermal

m
.co
Q.30 Which ONE or MORE of the following methods of shifting weights can be used to

m
improve the transverse stability of a rectangular pontoon?
e
las
Note: CG denotes the vertical centre of gravity of the pontoon.
ag

(A) From below the CG to above the CG

(B) From above the CG to below the CG

m
m .co
.co m
(C) From port to starboard at the same height from the keel

m s e
s e g l a
la a
(D) From forward to aft at the same height from the keel

ag

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 21 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 21 of 40

Q.31 Which ONE or MORE of the following can be caused by scavenging in a two-stroke
Diesel engine?

(A) Dilution of incoming fuel-air mixture

(B) Loss of incoming air

(C) Pushing out exhaust gases by incoming air

(D) Autoignition

Organizing Institute: IIT Guwahati Page 22 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 22 of 40

m
m .co

m .co s e m

se g l a
a
Q.32 A vessel of 5000 m3 displacement floating in seawater has a rectangular tank of
length 6 m and width 10 m. The tank is half-filled with seawater as shown in the
figure.

The virtual reduction in metacentric height due to free surface effect is ______ m
(answer in one decimal place).
m
m .co
m .co s e m
s e l a
g l a ag
a

Q.33 A solid beam with a rectangular cross-section of breadth 0.5 m and depth 0.12 m,
experiences a vertical shear force of 50 kN at a section.
m
.co
The maximum shear stress in that section is ______ MPa (answer in two decimal
places).
s em
g la air flowing steadily through them. The flow rate
Q.34 a
Consider two insulated tubes with
and temperature of the air are 0.1 kg/s, 20 ℃ in tube 1 and 0.2 kg/s, 25 ℃
in tube 2.

If the two streams are allowed to mix adiabatically, the steady-state temperature of
the mixed stream is ______ ℃ (rounded off to one decimal place).

Assume a constant Cp for air.

m
m .co
.co
Q.35 Consider a reversible heat engine with a thermal efficiency of 55%. The engine is

m s em
reversed and operated as a heat pump between the same temperature reservoirs.

s e If the heat supplied from the low temperature reservoir isl45
g a kJ/cycle, then the
g la a in integer).
absolute value of heat rejected is ______ kJ/cycle (answer
a

Q.36 – Q.65 Carry TWO marks Each
m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 23 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 23 of 40

Identify the p-h diagram that denotes a vapor compression refrigeration cycle with
Q.36
flash intercooling from the following.
The pressure and specific enthalpy of the working fluid are represented by p and h
respectively.

(A) p

4 3

1 2

h

(B) p

4 3

1 2

h

(C) p

6 5
4
7 3
1 2

h

(D) p

6 5
7 4
3
1 2

h

Organizing Institute: IIT Guwahati Page 24 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 24 of 40

m
m .co

m .co s e m

se g l a
a
Q.37 Which ONE of the following options CORRECTLY matches the efficiencies in
Column 1 with the corresponding definitions in Column 2?

m
.co
Column 1 Column 2

o m m
c
. efficiency s e
I
e m
Gear P Ratio of delivered power to shaft power
l a
a s
l II Shaft efficiency ag
ag Q Ratio of shaft power to brake power

III Hull efficiency R Ratio of thrust power to delivered power

Propeller (behind-
IV S Ratio of effective power to thrust power
hull) efficiency

m
m .co
s e
g la
(A) I-Q; II-P; III-S; IV-R a
(B) I-P; II-S; III-R; IV-Q

(C) I-P; II-R; III-Q; IV-S

m
m
(D) I-S; II-R; III-Q; IV-P
.co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 25 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 25 of 40

Q.38 A ship is undergoing a steady starboard turn. Assume that the total hydrodynamic
forces (𝑌) including the rudder forces act at the centre of buoyancy (𝐵).

If 𝑊 is the weight of the ship, 𝐺 is the centre of gravity and 𝑀 is the transverse
metacentre, then the magnitude of the heel angle (𝜙) is given by ______.

Assume that 𝜙 is small.

M

G y

B
Y

z

(A) 𝑌 × 𝐵𝐺
| |
𝑊 × 𝐺𝑀

(B) 𝑊 × 𝐵𝐺
| |
𝑌 × 𝐺𝑀

(C) 𝑊 × 𝐺𝑀
| |
𝑌 × 𝐵𝐺

(D) 𝑌 × 𝐺𝑀
| |
𝑊 × 𝐵𝐺

Organizing Institute: IIT Guwahati Page 26 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 26 of 40

m
m .co

m .co s e m

se g l a
a
Q.39 A ship undergoing harmonic oscillation has an uncoupled heave motion, 𝜂3 (𝑡),
governed by the following equation

(𝑀 + 𝐴33 ) 𝜂̈ 3 (𝑡) + 𝐵33 𝜂̇ 3 (𝑡) + 𝐾33 𝜂3 (𝑡) = 𝑓3 (𝑡)

If 𝐹3 (𝜔) is the Fourier transform of 𝑓3 (𝑡), then the response in the frequency
m
.co
domain can be written as ______.
m
.co s e m
s em l a
g la ag
(A)
a −𝜔 (𝑀 + 𝐴𝐹 )(𝜔)
2+ 𝑖𝜔𝐵 + 𝐾
3

33 33 33

(B) 𝑖𝐹3 (𝜔)
−𝜔 (𝑀 + 𝐴33 ) + 𝑖𝜔𝐵33 + 𝐾33
2

(C) 𝐹3 (𝜔)
m
.co
𝜔 2 (𝑀 + 𝐴33 ) − 𝑖𝜔𝐵33 + 𝐾33

e m
(D) 𝐹3 (𝜔)
las
𝜔 (𝑀 + 𝐴33 ) + 𝜔𝐵33 + 𝐾33
2
ag

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 27 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 27 of 40

Q.40 Adverse pressure gradient implies that ______.

(A) pressure decreases in the direction of flow

(B) pressure increases in the direction of flow

(C) pressure is zero everywhere within the flow field

(D) pressure is uniform (non-zero) everywhere within the flow field

Q.41 The drag force on a non-lifting smooth body immersed in an incompressible,
irrotational, uniform flow is ______.

(A) zero

(B) finite and greater than zero

(C) infinite

(D) finite and less than zero

Organizing Institute: IIT Guwahati Page 28 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 28 of 40

m
m .co

m .co s e m

se g l a
a
Q.42 For the truss shown in the figure, the magnitude of force in the member PR is
______ kN.

m
m .co
m .co s e m
s e l a
g l a ag
a

(A) 10

m
.co
(B) 0

e m
(C) 10
las
√3
ag
(D) 20
√3

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 29 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 29 of 40

Q.43 Choose the CORRECT bending moment diagram for the simply supported beam
shown in the figure with a concentric moment M at mid span.

Consider hogging as positive and sagging as negative.

Figures not to scale

P Q R

(A)

P Q R

(B)
P Q R

(C)

R
P Q

(D)
P Q R

Organizing Institute: IIT Guwahati Page 30 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 30 of 40

m
m .co

m .co s e m

se g l a
a
Q.44 The stresses in a shaft are:

i. Shear stress due to torsion
ii. Normal stress due to bending moments
iii. Axial stress

m
.co
Which ONE of the following options lists the stresses that are considered while
m
.co
designing a circular propeller shaft?
e m
em l as
la s ag
g
a (i) and (ii) only
(A)

(B) (ii) and (iii) only

(C) (i) and (iii) only

m
(D) (i), (ii) and (iii)
m .co
s e
g la
a

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 31 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 31 of 40

Q.45 The figure depicts the cavitation pattern of a propeller.

Which ONE of the following options CORRECTLY gives the description for the
labels P, Q, R, S, respectively in the figure?

PROPELLER
OPERATING
Cavitation number

RANGE

CAVITATION FREE ZONE

P S
R
Q

Advance coefficient

(A) Face cavitation, Bubble cavitation, Back cavitation, Tip cavitation

(B) Back cavitation, Bubble cavitation, Face cavitation, Tip cavitation

(C) Bubble cavitation, Face cavitation, Tip cavitation, Back cavitation

(D) Tip cavitation, Face cavitation, Bubble cavitation, Back cavitation

Organizing Institute: IIT Guwahati Page 32 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 32 of 40

m
m .co

m .co s e m

se g l a
a
Q.46 The dry bulb temperature (DBT) of atmospheric humid air is 30 ℃. The dew point
kg of water vapor
temperature (DPT) is also 30 ℃ and the humidity ratio is 0.025 . kg of dry air

The relative humidity (RH) of the air is ______ %.

m
m .co
m .co s e m
(A)
s e
100
l a
g l a ag
(B) a 25

(C) 50

(D) 0

m
m .co
s e
la
Q.47 Which of the following statements is/are TRUE regarding matrices?

ag

(A) Every square matrix can be expressed as the sum of a symmetric and a skew-
symmetric matrix.

(B) The determinant of a square matrix is same as that of its transpose.
o m
m . c
c. o(C) The product of a square matrix and its inverse results in the identitymmatrix.
s e
e m l a
las a g
g
(D) Eigenvalues of a square matrix are always real and positive.
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 33 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 33 of 40

Q.48 Consider a steady, two-dimensional, laminar, incompressible flow of water over a
horizontal flat plate of length L with Reynolds number, 𝑅𝑒𝐿 = 104 . The flat plate is
aligned with the incoming free-stream flow. The 𝑥-axis is along the length of the
plate while the 𝑦-axis is normal to the plate. The respective velocity components
are 𝑢 and 𝑣.

Which of the following statements is/are TRUE?

(A) For the flow within the boundary layer, 𝑢 ≫ 𝑣.

(B) 𝜕𝑢 𝜕𝑢
For the flow within the boundary layer, ≫ .
𝜕𝑦 𝜕𝑥

(C) The flow within the boundary layer is irrotational and inviscid.

(D) The thickness of the boundary layer is much less than the length of the flat plate.

Organizing Institute: IIT Guwahati Page 34 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 34 of 40

m
m .co

m .co s e m

se g l a
a
Q.49 Pick the CORRECT statement(s) corresponding to the following equation

𝜕𝐮 1
+ 𝐮 . ∇𝐮 = − ∇𝑝 + 𝐠 + 𝜗∇2 𝐮
𝜕𝑡 𝜌

where 𝐮 is the velocity vector, 𝑝 is the pressure, 𝜌 is the density, 𝐠 is the
m
m
gravitational acceleration vector, 𝑡 is time, and 𝜗 is the kinematic viscosity.
.co
.co s e m
s em l a
g la ag
(A) a It represents the conservation of linear momentum.

(B) It is a nonlinear partial differential equation.

(C) It is valid for both Newtonian and non-Newtonian fluids.

m
.co
(D) It is valid for incompressible flow.

e m
las
ag

m
m .co
m .co s e m
s e g l a
g la a
a

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 35 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 35 of 40

Q.50 Consider the flow of water over a smooth curved wall surface. It is given that the
flow separates at some location R on the surface known as the separation point.

Pick the CORRECT option(s).

(A) At R, the wall shear stress is zero.

(B) 𝜕𝑢
At R, = 0, where 𝑦 is normal to the surface and 𝑢 is the velocity of the flow
𝜕𝑦
tangential to the surface.

(C) At R, viscosity of the fluid becomes zero.

(D) Immediately downstream of R, the direction of flow is reversed locally.

Q.51 Which of the following Reynolds numbers do(es) NOT represent creeping flow?

(A) 0.01

(B) 0.001

(C) 5 × 105

(D) 2300

Organizing Institute: IIT Guwahati Page 36 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 36 of 40

m
m .co

m .co s e m

se g l a
a
Q.52 Consider two engines operating on Otto and Diesel air-standard cycles with the
same compression ratio.

Which of the following is/are TRUE about the thermal efficiency (𝜂) and the peak
pressure (𝑝𝑝𝑒𝑎𝑘 )?

m
m .co
.co s e m
s em l a
ag
𝜂𝑂𝑡𝑡𝑜 < 𝜂𝐷𝑖𝑒𝑠𝑒𝑙
la
(A)

g
a𝜂 >𝜂
(B) 𝑂𝑡𝑡𝑜 𝐷𝑖𝑒𝑠𝑒𝑙

(C) (𝑝𝑝𝑒𝑎𝑘 )𝑂𝑡𝑡𝑜 > (𝑝𝑝𝑒𝑎𝑘 )𝐷𝑖𝑒𝑠𝑒𝑙

(D) (𝑝𝑝𝑒𝑎𝑘 )𝑂𝑡𝑡𝑜 = (𝑝𝑝𝑒𝑎𝑘 )𝐷𝑖𝑒𝑠𝑒𝑙

m
.co
s em
Q.53
g la degree of freedom, choose the CORRECT
For a dynamic system with single
statement(s). a

(A) Damped natural frequency is greater than the undamped natural frequency.

m
.co
(B) Dynamic response is always greater than static response at all excitation
m
.co
frequencies.

m s em
e Damping ratio can be estimated using logarithmic decrementla
las (C)
ag method.

ag (D) A non-zero phase lag is always observed between the excitation and response for a
damped system.

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 37 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 37 of 40

Q.54 A differentiable function 𝑓(𝑥) is such that 𝑓(−0.1) = 2, 𝑓(0) = 1, and
𝑓(0.1) = 2.

𝑑2𝑓
Then, at 𝑥 = 0 is ______ (answer in integer).
𝑑𝑥 2

Q.55 Consider the function 𝑓(𝑥, 𝑦) = 𝑥 3 + 𝑦 2 .

If 𝐹⃗ = ∇𝑓, then ∫ 𝐹⃗ . 𝑑𝑟⃗ evaluated from (0, 0) to (1, 2) is ______ (answer in integer).

Q.56 Consider a case where two identical six-faced fair dice are rolled simultaneously.

The probability of getting even numbers in both AND a sum equal to 5 and above
is ______ (rounded off to two decimal places).

Q.57 Water of density 1000 kg/m3 flows at a steady rate in a converging duct of circular
cross-section. Let the areas of sections 1 and 2 be 100 cm2 and 50 cm2 respectively.
The pressure and average velocity at section 1 are 110 kPa and 1 m/s.

If the centres of the two sections are at the same elevation, then the pressure at
section 2 is ______ kPa (answer in one decimal place).

Q.58 A static system consisting of air, water, oil and mercury is shown in the figure.

If Q is open to the atmosphere, the gauge pressure at P is ______kPa (rounded off
to one decimal place).

Consider g = 10 m/s2, ℎ1 = 0.5 m, ℎ2 = 0.7 m, ℎ3 = 0.8 m,
density of water = 1000 kg/m3, 𝑆𝐺𝑜𝑖𝑙 = 0.9 and 𝑆𝐺𝑚𝑒𝑟𝑐𝑢𝑟𝑦 = 13.6 (where 𝑆𝐺 is
specific gravity).

OIL
AIR
P
Q

WATER

MERCURY

Organizing Institute: IIT Guwahati Page 38 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 38 of 40

m
m .co

m .co s e m

se g l a
a
Q.59 A ship of 4000 m3 displacement has a block coefficient of 0.8.

If the beam is 0.1 times the length and twice the draught, then the length of the ship
is ______ m (answer in integer).

m
.co
Q.60 A ship consumes 250 tonne of fuel when moving from sea to a river. On arrival,

o m
draught and trim (measured at rest) are the same as the corresponding values at sea.
m
. c s e
em a
The displacement of the ship in seawater is ______ tonne (answer in integer).

as g l
l a 3 3

agrespectively.
The density of seawater and river water are 1025 kg/m and 1000 kg/m

Q.61 The critical buckling load of a 6 m long, 10 cm diameter axially loaded solid steel
column with hinged support at both ends is ______ kN (rounded off to nearest
integer)

Assume Young’s modulus of steel as 2 × 105 N/mm2.

m
Q.62
.co
A box shaped pontoon of length 100 m, breadth 12 m and draft 10 m is floating in
m
e
water of density 1 tonne/m3. The roll radius of gyration is 1% of the ship’s length
s
la
and the roll added mass moment of inertia is 20% of the roll mass moment of inertia.

of gravity is at 6 m from the keel. ag
The vertical centre of buoyancy is located at half of the draft, and the vertical centre

The roll natural frequency of the pontoon is ______ rad/s (rounded off to two
decimal places).

Assume g = 10 m/s2.

Q.63 A ship is moving at 10 m/s in head sea condition. A person on board counts the time
m
.co
period between two successive wave crests as 𝜋 seconds.
m
m .co The frequency of the incoming wave is ______ rad/s (answer in integer).
s e m
s e g l a
la
Assume g = 10 m/s2.
g a
a Q.64 A steel girder of length 10 m has one end rigidly attached to a ship’s bulkhead and
the other end free. It is subjected to a torsional moment of 30 kNm about its
longitudinal axis at the free end. The shear modulus of steel is 80 GPa and the polar
moment of inertia of the section is 6 × 10−4 m4.

The total twist at the free end is ______ × 10−4 rad (rounded off to one decimal
place).

m .
.co s e m
s em l a
la
Organizing Institute: IIT Guwahati

g
Page 39 of 40
ag
a For more Question Papers, Sample Papers, Notes & Syllabus visit Page 39 of 40

Q.65 A propeller of 4 m pitch is rotating at 120 rpm. It has a behind-hull propeller
efficiency of 60% and a real slip of 25%.

If the power delivered to the propeller is 2800 kW, then the thrust produced by it
is ______ kN (answer in integer).

Organizing Institute: IIT Guwahati Page 40 of 40

For more Question Papers, Sample Papers, Notes & Syllabus visit Page 40 of 40
