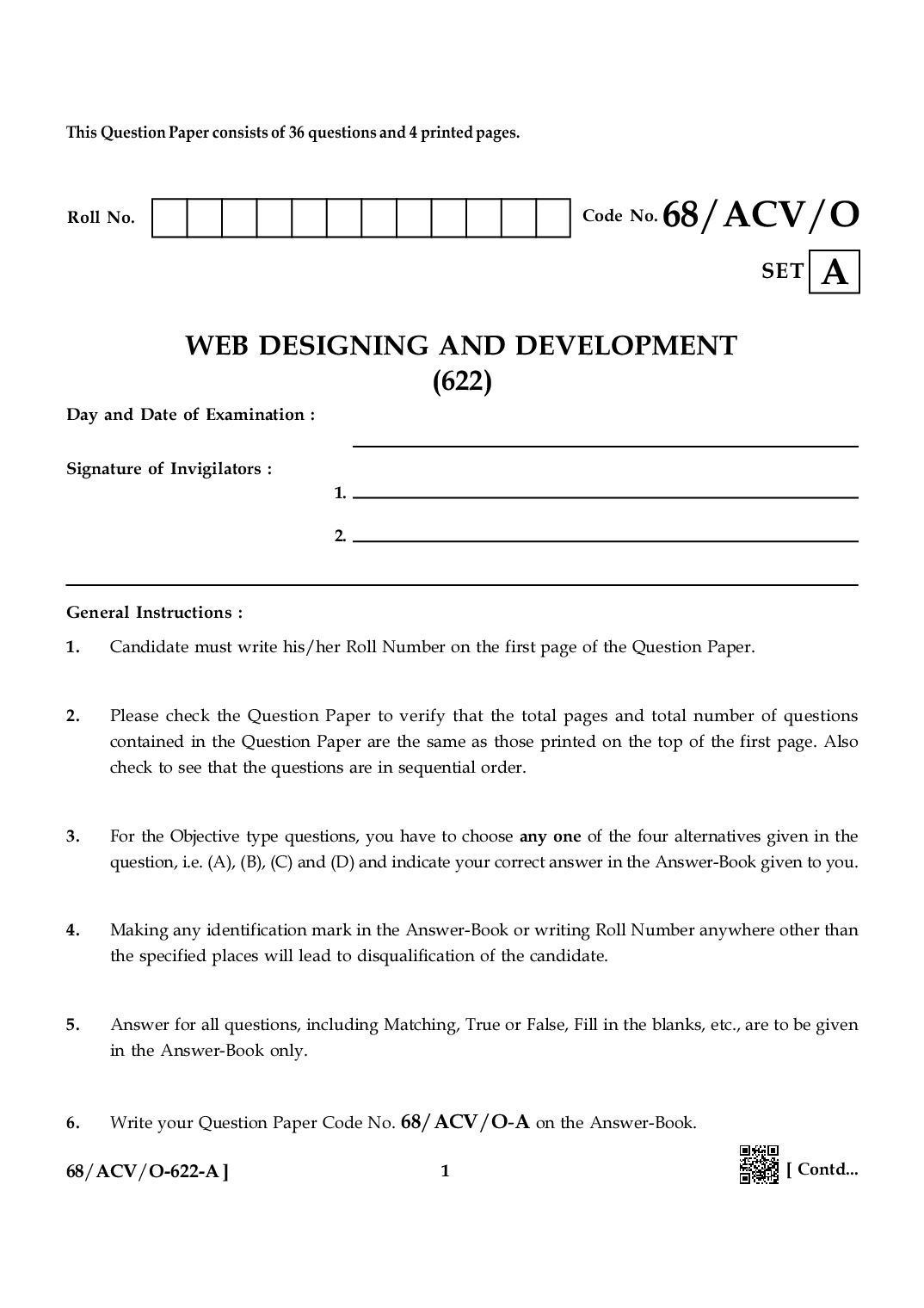

NIOS Class 12 October 2024 Question Paper Web Designing and Development

This Question Paper consists of 36 questions and 4 printed pages.

Roll No. Code No. 68/ACV/O
SET A
Day and Date of Examination :

Signature of Invigilators :
1.

2.

General Instructions :

1. Candidate must write his/her Roll Number on the first page of the Question Paper.

2. Please check the Question Paper to verify that the total pages and total number of questions
contained in the Question Paper are the same as those printed on the top of the first page. Also
check to see that the questions are in sequential order.

3. For the Objective type questions, you have to choose any one of the four alternatives given in the
question, i.e. (A), (B), (C) and (D) and indicate your correct answer in the Answer-Book given to you.

4. Making any identification mark in the Answer-Book or writing Roll Number anywhere other than
the specified places will lead to disqualification of the candidate.

5. Answer for all questions, including Matching, True or False, Fill in the blanks, etc., are to be given
in the Answer-Book only.

6. Write your Question Paper Code No. 68/ACV/O-A on the Answer-Book.

68/ACV/O-622-A ] 1 [ Contd...

Time : 3 Hours ] [ Maximum Marks : 80
Note : (i) Section-A contains 15 questions of 1 mark each.
(ii) Section-B contains 8 question of 2 marks each.
(iii) Section-C contains 8 questions of 3 marks each.
(iv) Section-D contains 5 questions of 5 marks each.

(1) Answers of all questions are to be given in the Answer-Book given to you.
(2) 15 minutes time has been allotted to read this question paper. The question paper will be
distributed at 2:15 p.m. From 2:15 p.m. to 2:30 p.m., the students will read the question paper
only and will not write any answer on the Answer-Book during this period.

SECTION-A
Fill in the blanks : 1x15=15
1. __________ connection offers Internet connectivity through the use of digital phone lines
instead of standard analog line and gives speed of upto 128 kbps or more.

2. A __________ is a unique address on web and indicates where the webpage is stored on the
Internet.

3. __________ are obstacles that makes it difficult or some times impossible for the people with
disabilities to do the things which a normal person does with ease.

4. An accessible website does not rely on the mouse; it provides all functionality via __________
so that people with disabilities can use assistive technologies easily.

5. Adobe Dreamweaver is an _________ editor for designing, coding, developing and managing
websites and webpages for various applications.

6. __________ are very important in a webpage as they can be used for importing and exporting
tabular data.

7. ___________ are an important component of webpage and are images with text on them
which guides the user to navigate from one location to another.

8. __________ is normally a short program rather than a sequence of instructions which are
interpreted.

9. To publish your pages on web, you must send your files to the web host server which can be
done using a __________ program.

10. Tags which have both opening and closing (i.e. <TAG>and</TAG>) are called
_________elements in an HTML documents.

68/ACV/O-622-A ] 2 [ Contd...

11. __________ websites are large websites which usually include hundreds of webpages with
large amount of content stored in an organized way.

12. __________ define the objects that change in your animation.

13. __________ in flash tool is associated with layers and frames and it organises and controls
the objects in a flash document with respect to time.

14. In Photoshop you can use __________ to arrange your work into different levels that can be
viewed and edited as individual units.

15. __________ means making table inside another table.

SECTION - B
Answer the following : 2x8=16
16. Define Internet and list out its applications.

17. Explain Bridges as Internetworking devices.

18. What are the Benefits and Drawbacks of DSL connection ?

19. Explain five basic steps to be followed for organizing your content of website.

20. What do you understand by “Windows Object” and what are its methods ?

21. What are the Hardware Requirements for Multimedia ?

22. Write down the steps to insert text into frame.

23. Define Cropping and write down the steps of using cropping tool.

SECTION - C
Answer the following : 3x8=24
24. Explain the three image formats used in webpages.

25. Explain the Tutorial structure used for websites.

26. What is Hyperlinking Policy ?

27. What is the use of visibility property of CSS ?

28. Define the term “Properties Inspector”.

29. Write a short note on “Event Handling”.

30. What is iterative constructs ? What are its types ? Write their syntax.

31. Describe components of web accessibility.

68/ACV/O-622-A ] 3 [ Contd...

SECTION - D

Answer the following : 5x5=25
32. Answer all the questions on the basis of the image given below :

(a) Identify the type of topology and give a brief description.
(b) Write the advantages of this topology.
(c) Write the disadvantages of this topology.
(d) The central point of this topology is a HUB; What is its significance ?
(e) Write one of its advantage and disadvantage.

33. Give a brief description of the following :
(a) Ordered and Unordered list
(b) Character formatting tags.
(c) Cascading Style Sheets (CSS)
(d) Special characters used for creating HTML documents.
(e) Essential HTML elements.

34. Write the HTML code to create the following table :
Apply yellow background colour to the complete column heading NAME and red colour to
the last row. Also display the word CHRISTMAS in ITALICS.

LIST OF HOLIDAYS
Sl. NO. NAME DATE DAY
1. INDEPENDENCE DAY 15.08.2024 WEDNESDAY
2. MAHATMA GANDHI'S BDAY 02.10.2024 WEDNESDAY
3. CHRISTMAS 25.12.2024

35. Write the steps to create a webpage using Dreamweaver. Also write what is the quickest
way of creating a new document.

36. Briefly describe each one of the following :
(a) Word press
(b) Multimedia development tools
(c) Multimedia formats
(d) A list of webpage components
(e) Desirable features of a multimedia system

-oOo-
